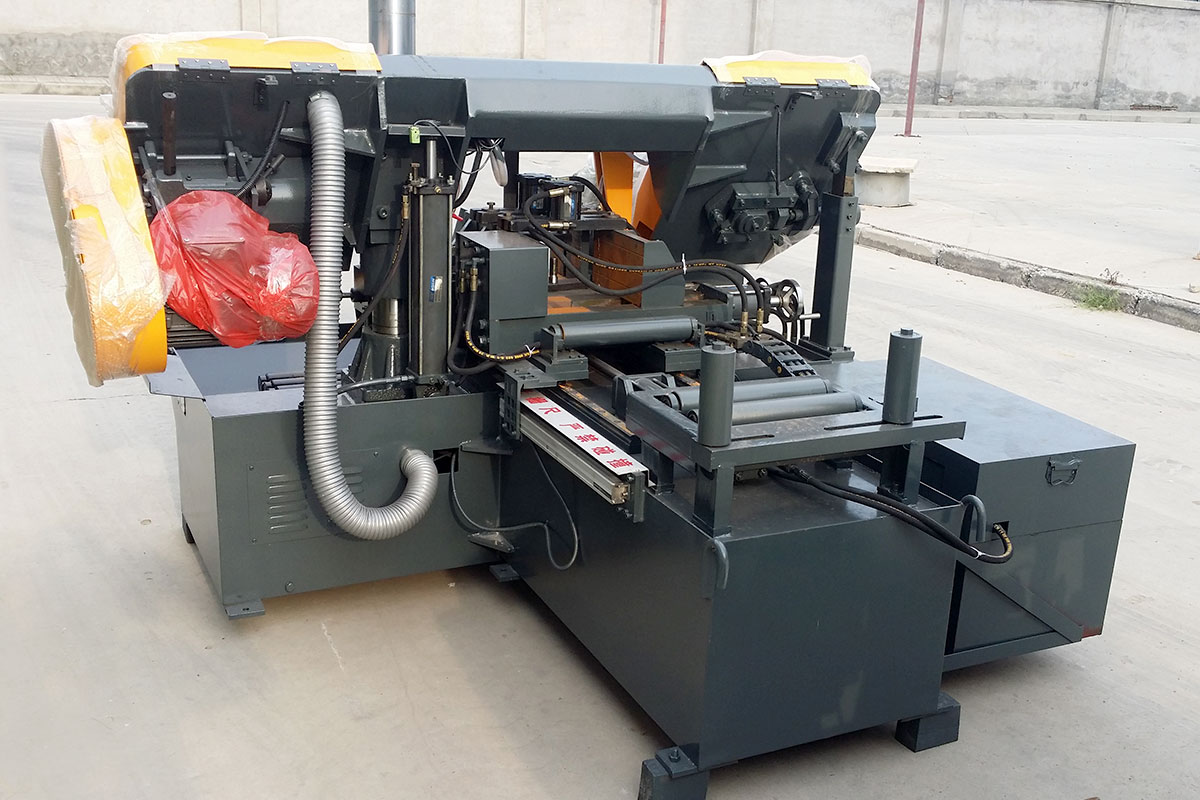

GZK4232 CNC band sawing machine is a new automatic band sawing machine developed by the company at the end of 2013, and it is mainly for domestic sales. The product has characteristics of double-column guide, stable structure, reliable performance, and artistic appearance. The surface of the column is coated with hard chrome to ensure anti-wear and high precision and to prolong the service life of the machine tool. With hydraulic lifting, stepless high speed, and self-set range, the better sawing conditions can be satisfied. The clamping system of the machine tool adopts the hydraulic and manual clamping combination for convenient operation. The saw blade uses bearings and adjustable tungsten steel guides to ensure cutting accuracy.
GZK4232 has CNC automatic sawing function that can be customized according to the needs of users. With simple operation and easy use, the machine can work automatically only after entering the size of the material to be sawed until the material is cut. The machine has shutdown protection functions in the event of band breakage and band blockage.
I. Key Technical Parameters of Saw Machine
| Sawing range | ○320 □320×350 mm(Without upper clamp) |
| Saw band spec.(length×width×thickness) | 4115×34×1.1 mm |
| Sawing line speed(five gears) | 20、35、45、65、80 M/min |
| Feed speed | Stepless speed regulation mm/min |
| Main motor power | 3 Kw |
| Hydraulic station motor power | 0.75 Kw |
| Cooling motor power | 0.04 Kw |
| Load bearing capacity of work bench | 2 T |
| Rear feed size | 400 mm |
| Feeding accuracy | 0.2 mm |
| Saw band tensioning method | Manual |
| Material clamping mode | Hydraulic front and rear double clamps |
| Outline dimensions of machine | 2400mm×1800mm×2400mm |
| Machine weight | 2100 KG |
II. Performance and Configuration
● The key original hydraulic components and seals adopt the hydraulic parts from Taiwan Sanyou Hydraulics and Taiwan Asada Company, featuring with long service life, good reliability and long trouble-free time.
● The key electrical components adopt CHINT brand, featuring with long service life, good reliability and long trouble-free time.
● The main motor adopts the product from Shanghai Dedong, and the oil pump motor adopts the product from Sanyou Company.
● CNC PLC and grating ruler adopts Delta products.
● The main drive worm gear box adopts the products from Zhejiang Huayu company.
● The saw blade has a flexible steel brush, which can fully remove iron chips from the tooth part of the saw blade and prolong the service life of the saw blade.
III. Technology and Quality
● The new product that fully meets the standards and passes the strict inspection are provided.
● The main structures (such as machine bed and saw frame) are subject to the surface sandblasting and vibration aging treatment (internal stress removal process) to ensure the elimination of internal stress and enhance surface adhesion.
● The German process technology and management technology are adopted for the quality control of the entire process.
● The main drive worm adopts the following processes: blanking → rough machining → quenching and tempering → fine processing → surface quenching → gear teeth grinding processes.
IV. Technical Standards of GZK4232 Sawing Machine
This machine tool complies with the following standards:
JB/T4318.3-2002 Horizontal band sawing machine – Testing of the accuracy
JB/T4318.4 – 2002 Horizontal band sawing machine – Technical conditions
JB16454 – 1996 Sawing machines for metal cutting – Safeguarding specifications
