I. Main Technical Parameters
| Sawing machine model | V6-G4032C（0°-60°） |
| Sawing capacity (mm) (without upper clamping sleeve) | 30° ○320 □320（width）×210（height） |
| 45° ○230 □250（width）×190（height） | |
| 60° ○180 □180（width）×110（height） | |
| Saw band spec. (length×width×thickness) | 3820×27×0.9 |
| Saw band speed(m/min) | 27、40、54、68、80 |
| Main motor power(Kw) | 3 |
| Feed speed | Hydraulic stepless speed regulation |
| Workpiece clamping | Hydraulic clamping |
| Saw band tensioning | Hydraulic and manual dual-purpose |
| Outline dimensions (L×W×H)(mm) | 2100×1350×1400 |
| Weight Kg | 1500 |
II. Basic Features of the Sawing Machine

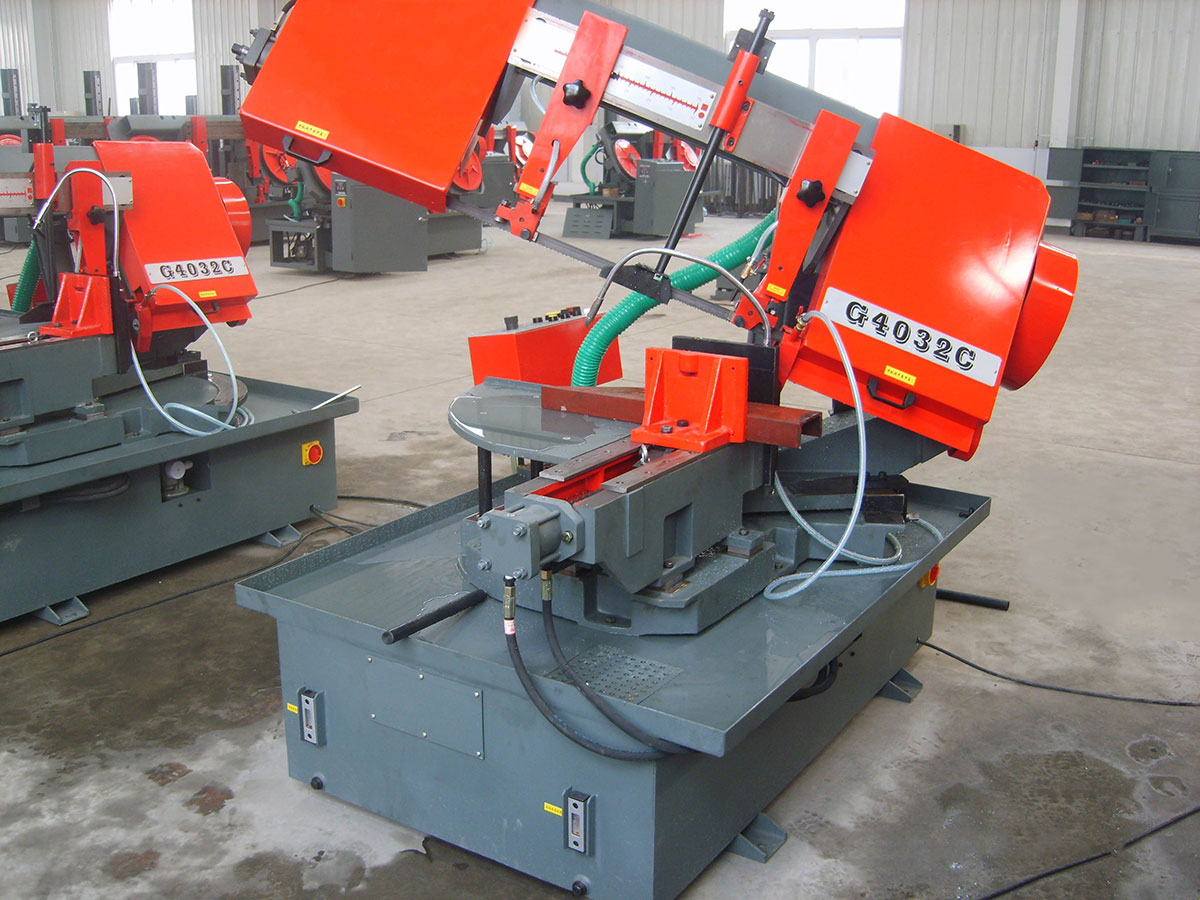

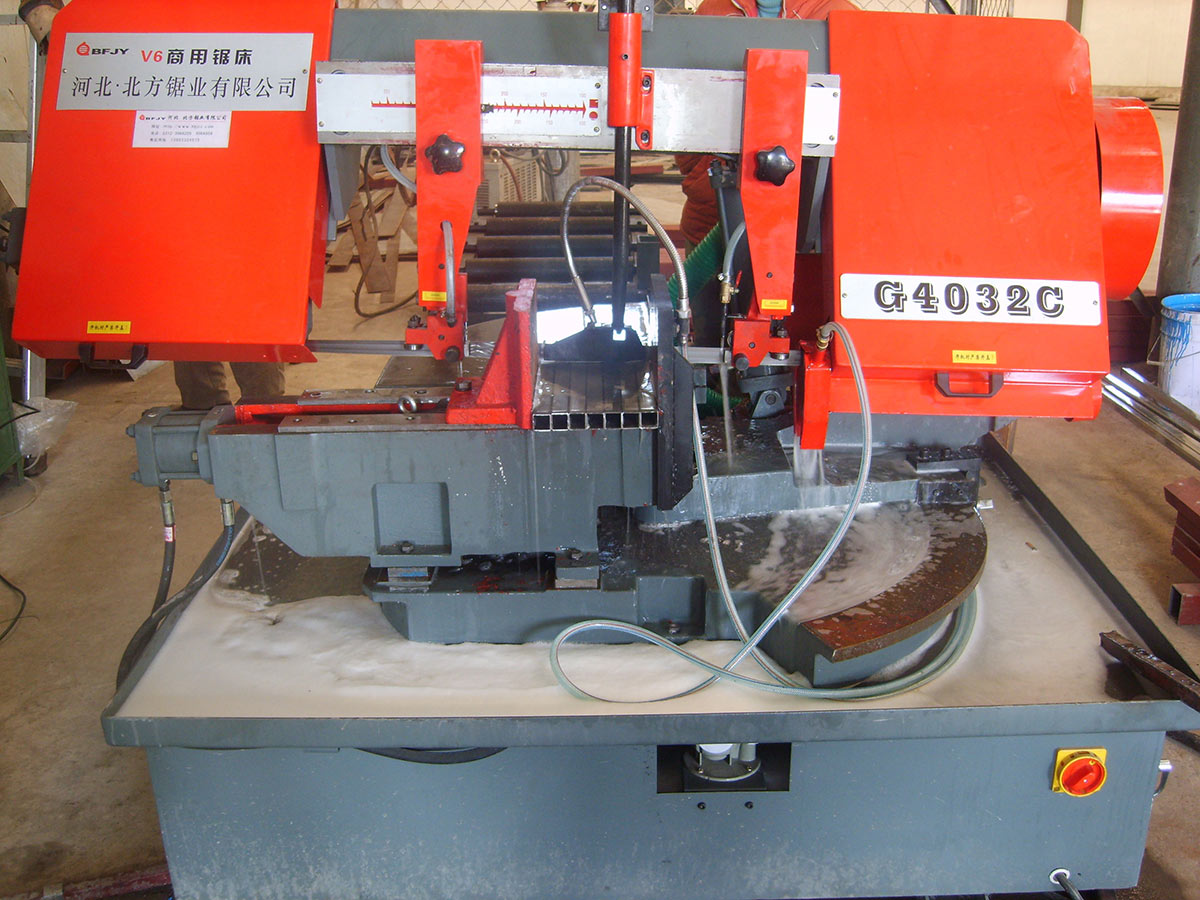

A. The saw head can be rotated by 0-60° angle for sawing, with hydraulic clamping, hydraulic tensioning, and automatic fast forwarding.
B. Machine tool structure: Horizontal semi-automatic.
C. Operation mode: manual/automatic, all use button operation, convenient and simple.

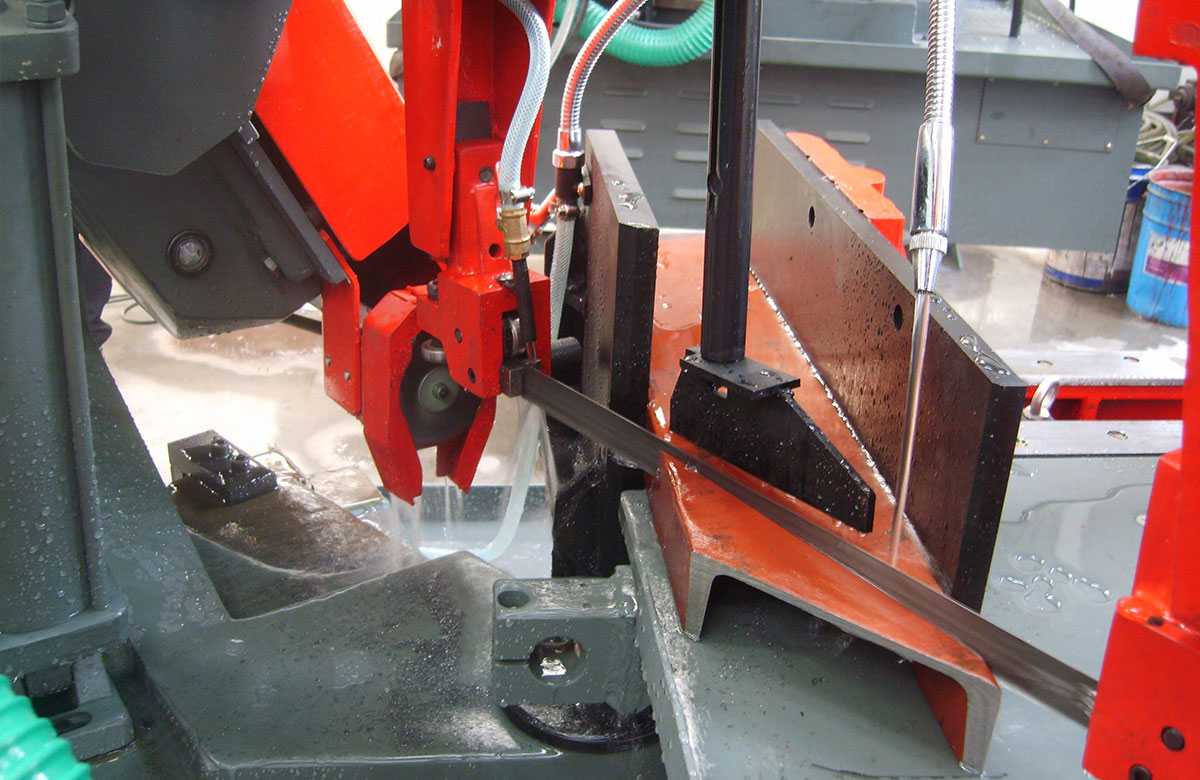

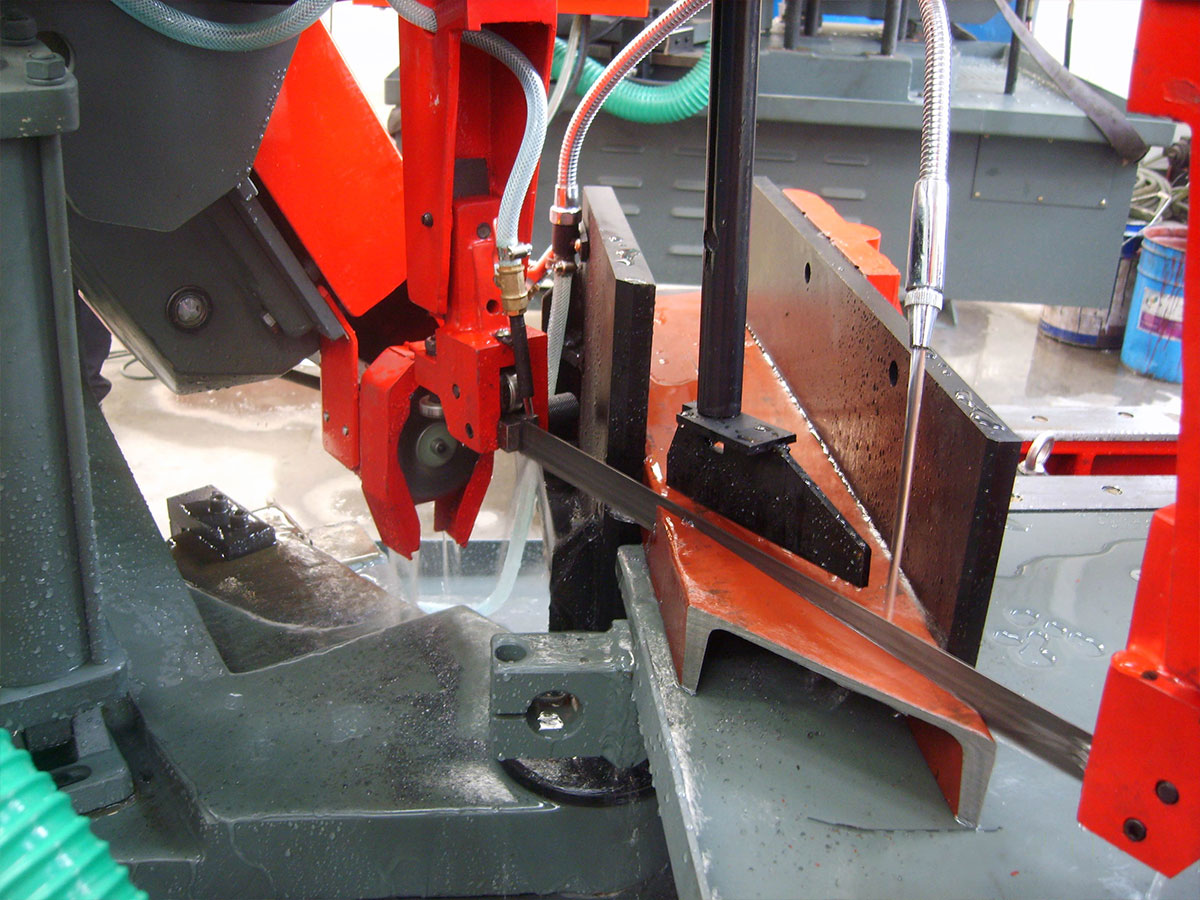

D. The use of saw bland guide device composed of the rolling bearing, the cemented carbide, and the spring positioning system can prolong the service life of the saw blade.
E. Hydraulic stepless speed regulation.
F. A closed large fuel tank is used to ensure continuous operations for 24 hours without generating heat.
G. Worm gear drive.

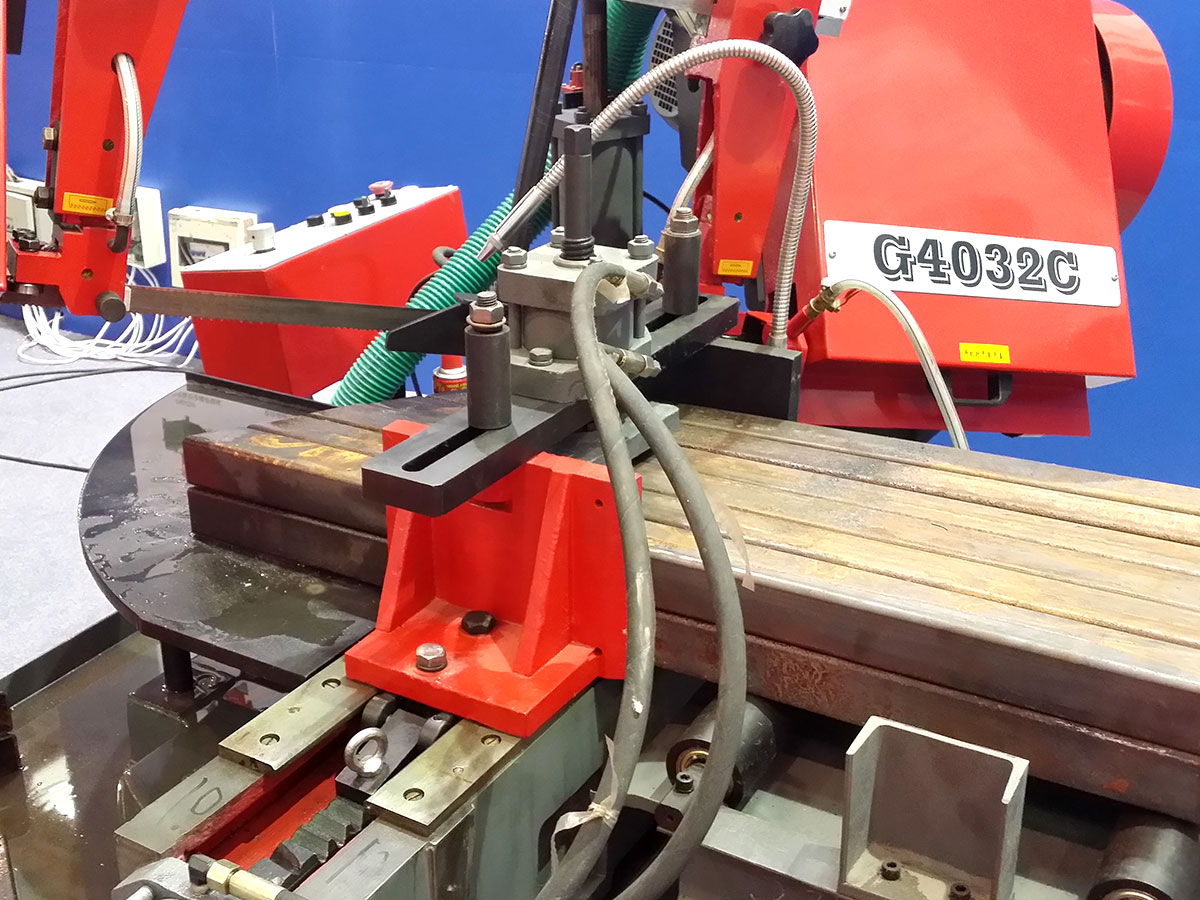

H. With self-locking device, the workpiece cannot be sawed without being tightened, and the workpiece cannot be release in the cutting process.
I. Recovery to high accuracy by adjustment after long-time operation.
III. Service Commitment
a) Our company will understand the user’s production and processing needs before sales to provide users with band sawing machines with reasonable performance and price, and will go to the user’s site to provide timely and accurate technical assistance to the user when necessary and make reasonable explanations on technical documents, drawings, use instructions, equipment performance, and analysis methods.
b) After the product is delivered, perform the training about equipment operation, maintenance and analysis and inspection for operators and maintenance personnel;
c) If found fault during the operation of the product, a timely reply is made or the service personnel will be dispatched within 24h after receiving the maintenance notice issued from the user;
d) It is ensured that spare parts for maintenance are provided for delivered products.
IV. Ordering Notice
a) The sawing machine has no the upper clamping sets (the clamping device used for bundle cutting) by default, and it can be purchased separately if required.
b) If the actual cutting range is smaller after the upper clamping device is purchased, please contact the sales personnel in advance according to the actual use situations.
c) The installation and commissioning of the equipment free of charge are available only for the surrounding areas of Hebei, and some cost will be paid for commissioning in other areas; the special cost will be determined through negotiation depending on the distance.
