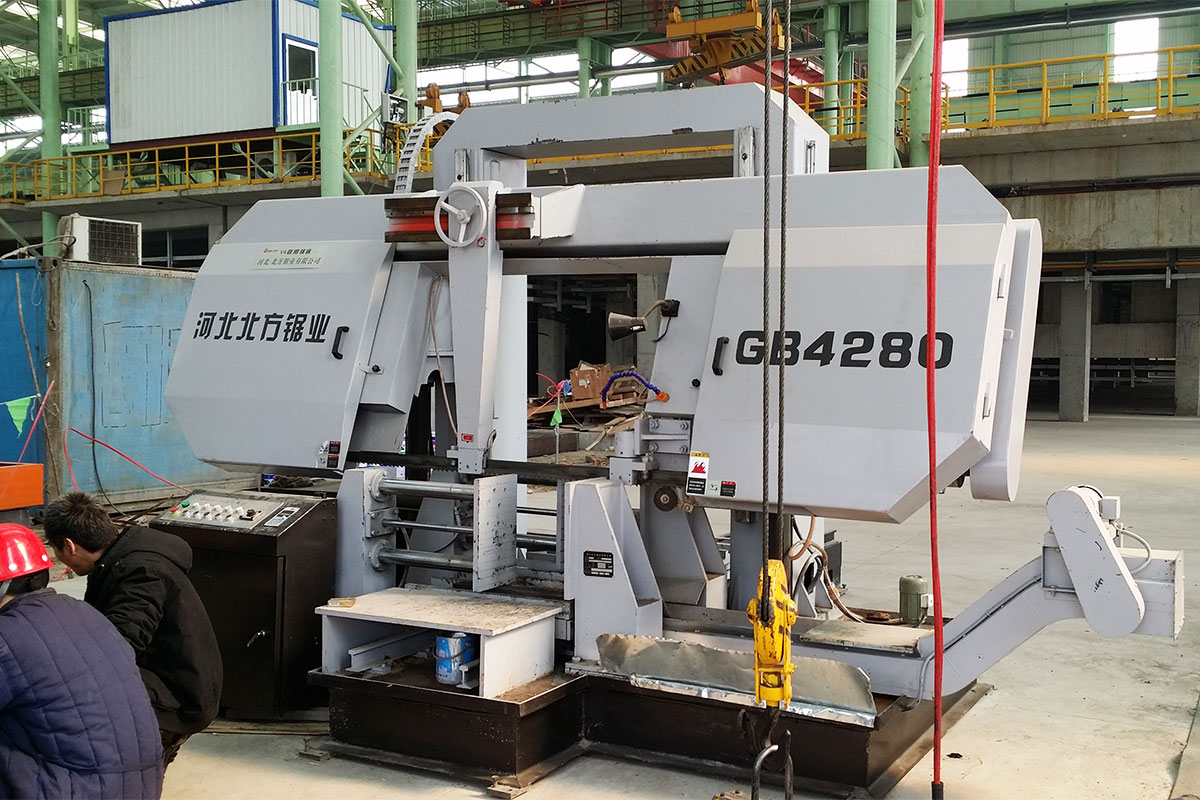

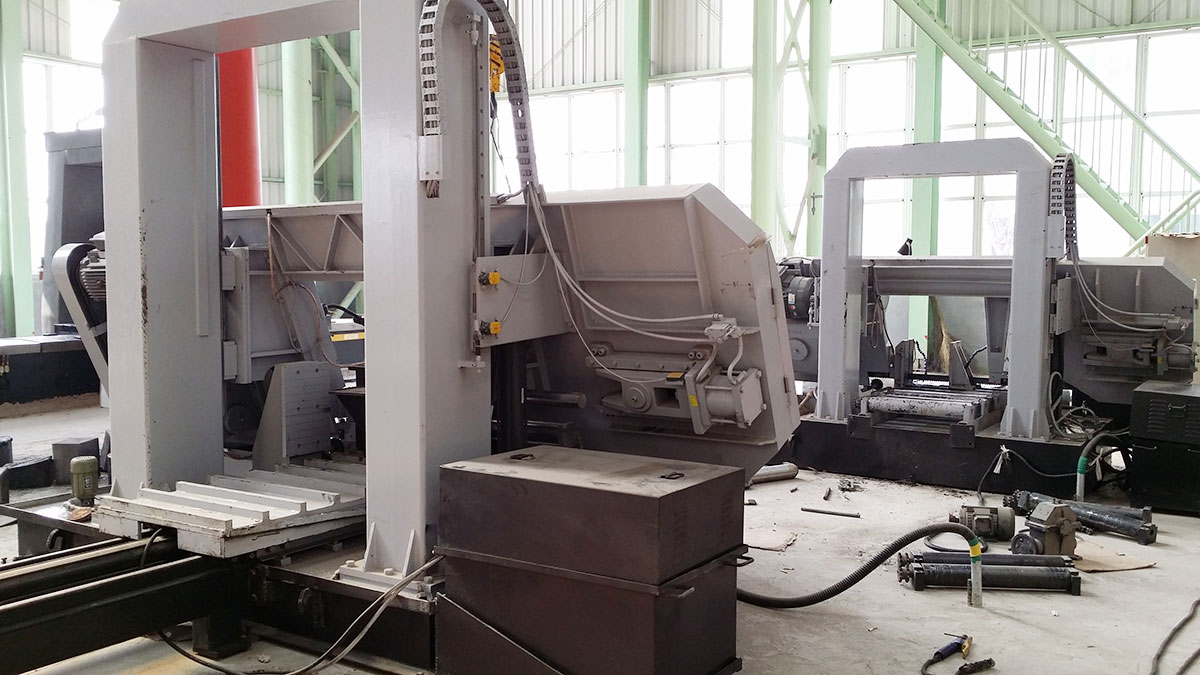

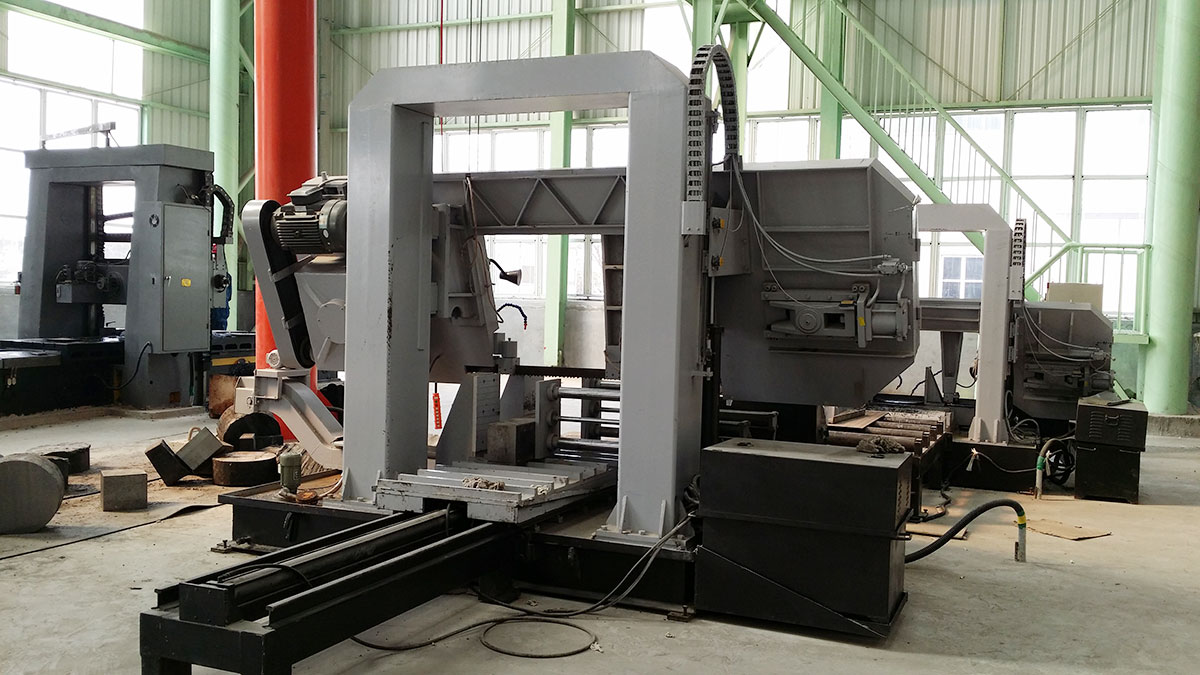

I. Main Purpose of Machine Tool
This machine tool is used to cut large steel billets with a cutting height of ≤800mm and a width of ≤800mm, and it can also cut various ferrous or non-ferrous metal materials through selecting appropriate process parameters.
II. Main Features of Machine Tools
1. The machine tool has the functions of automatic clamping and automatic feeding through the combination of mechanical, electrical and hydraulic systems.
2. The feed speed of the machine tool can be adjusted steplessly within a given range.
3. The main moving parts - the lifting and lowering motion guide of the saw frame adopt high-precision rolling linear guide pairs with high movement accuracy.
4. The cutting tool adopts a thin bimetal band saw blade with narrow cut, less consumables and small power required, and it is a cutting device used to cut large steel billets and large mold blanks in the large and medium-sized enterprises and institutions with significant material saving and energy saving.
III. Key Technical Parameters of Machine Tools
| Sawing range(H×W) | Round stock:800 Square stock:800×800mm |
| Saw blade specification(L×W×T) | 8570×67×1.6mm |
| Sawing speed | 25 40 60M/min |
| Feed speed | stepless speed regulation |
| Main motor power | 11kw |
| Hydraulic motor power | 3.7kw |
| Cooling motor power | 90w |
| Hydraulic tank volume | 160L |
| Cooling tank capacity | 200L |
| Main machine(L×W×H) | 4500*3000*3100mm |
| Weight | 8500KG |
IV. Description of Main Parts used in Machine Tools
1. Main drive: The product from the Huayu Worm Gear Reducer Co., Ltd. that is a transmission equipment manufacturer.
2. The linear guide pair adopt a product from Nanjing Process Equipment Manufacturing Co., Ltd.
3. The hydraulic components adopt the Northman products manufactured by the Taiwan manufacturer Northman Precision Machinery Co., Ltd. or the products from the Asada company, and they have characteristics of reliable action performance, strong anti-pollution capacity and high cost performance.
4. The electrical components adopts the products from the domestic CHINT company.
5. Selection of hydraulic oil: Petroleum-based oil - equivalent to ISO VG46 oil. Recommended viscosity of hydraulic fluid: 15200cSt. It is recommended that users use Hailian No. 46 anti-wear hydraulic oil.
V. GD4280 Technical Standards
This machine tool complies with the following standards:
JB/T4318.3-2002 Horizontal band sawing machine – Testing of the accuracy
JB/T4318.4 – 2002 Horizontal band sawing machine – Technical conditions
JB16454 – 1996 Sawing machines for metal cutting – Safeguarding specifications
